제품정보
주요기능 및 특장점
제품사양

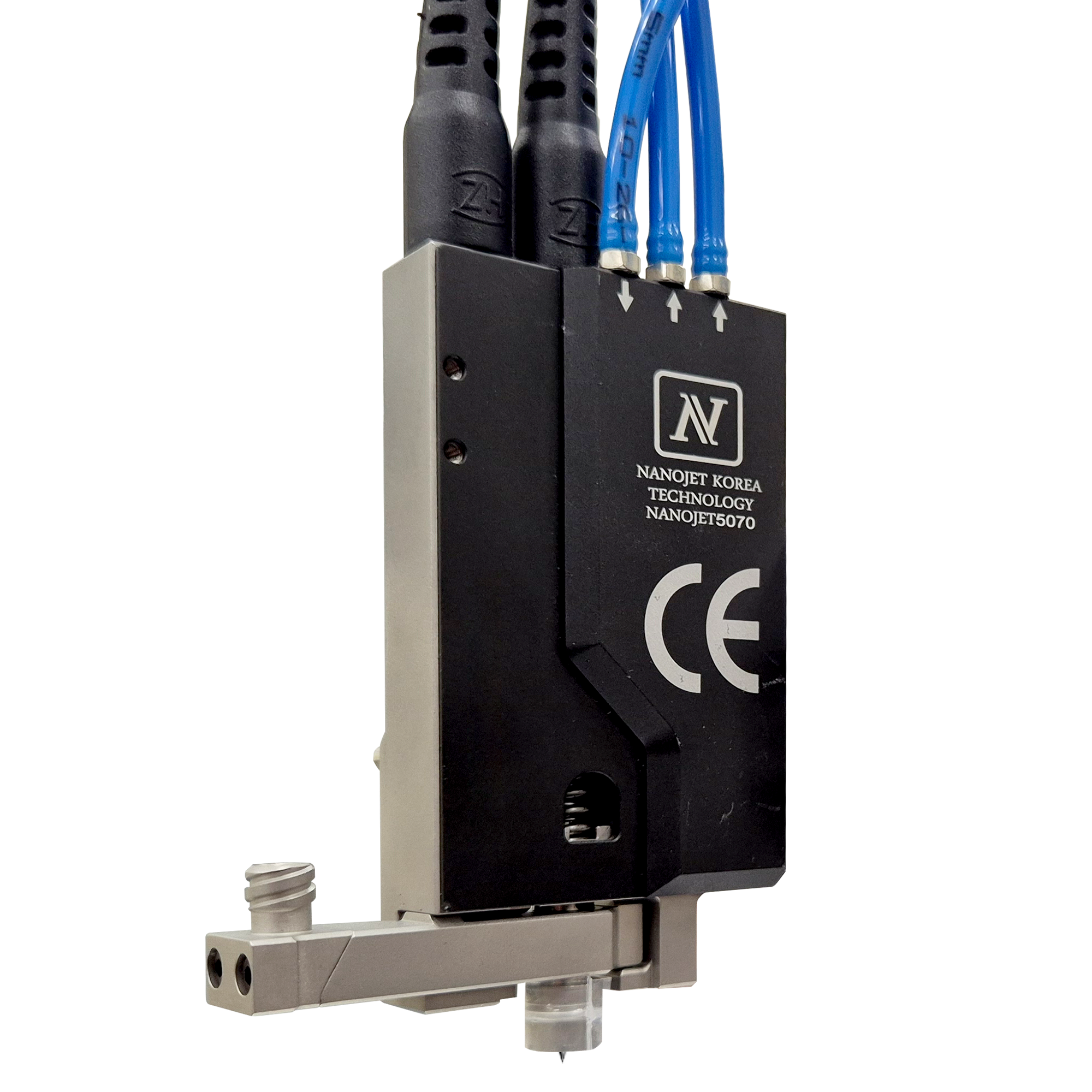

| Model | BJ-5070 |
| Max Frequency | 500 cycles/s |
| Min Flow rate | 0.004mg/dot |
| Viscosity Range | 1 ~ 200,000cps |
| Mini Dot size | 0.2~0.3mm |
| Piezo Stack | German PI Stack |
| Valve change time | Within 5 minute |
| Dimension | 101 x 72 x 27mm |
| Weight | 380g |
| Max Temp | 80℃ |
| Nozzle Type | Tungsten carbide/ceramic |
| Min Nozzle Size | 50um |
| Life time | 3-5 years/0.5 billions dots |
