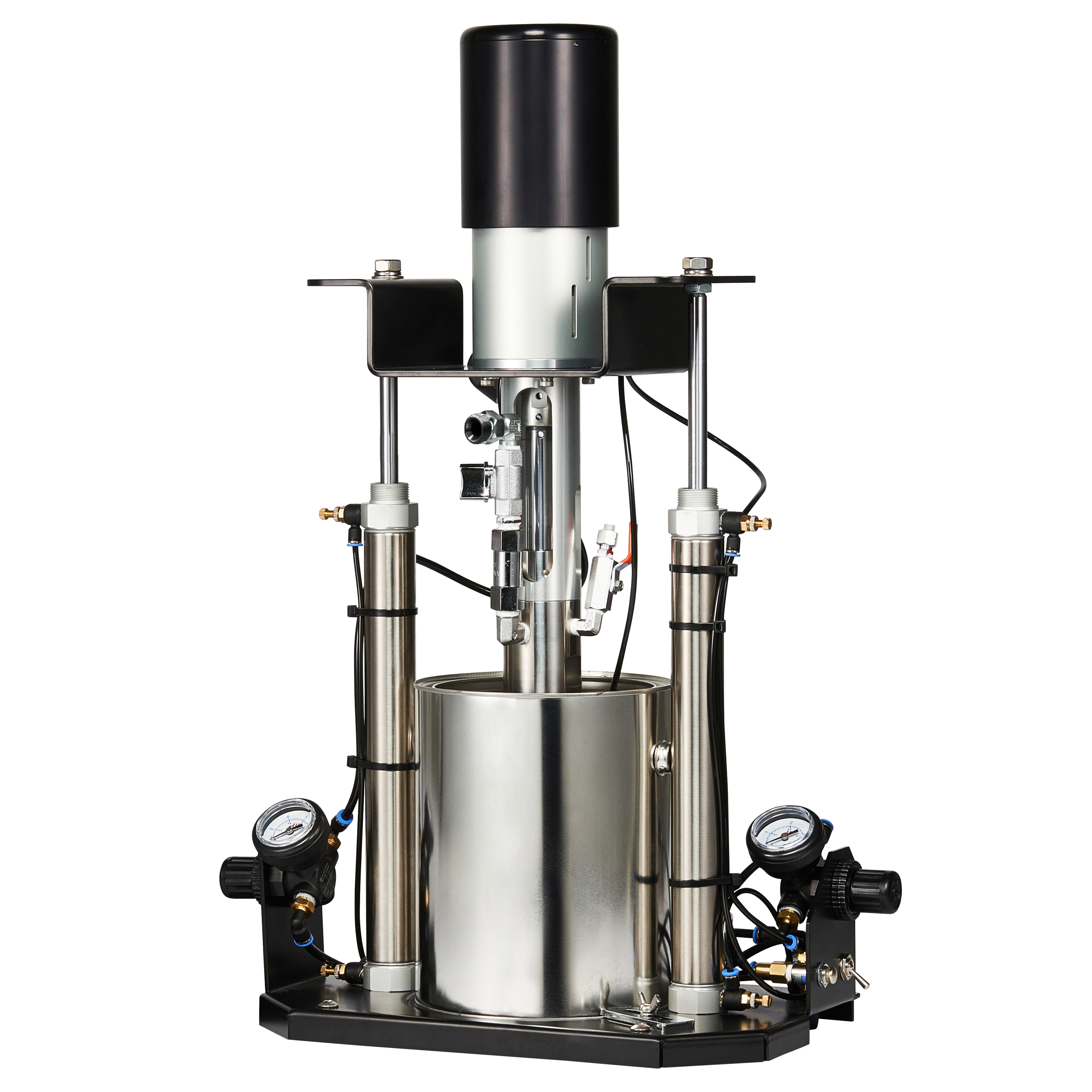

The PCP-⍺135 is an advanced high-viscosity pressure pump specifically designed for dispensing materials directly from small containers (1kg, 3kg, and 5kg). Engineered for precision and efficiency, this system eliminates material loss and simplifies the dispensing process by working directly with the original container.

• Direct Dispensing from Containers: Operates seamlessly with small containers, ensuring no material transfer is required.
• No Material Loss: The system maintains close contact with the container to prevent waste or residue.
• Pressure Intensification Ratios: Supports dispensing of high-viscosity materials with various pressure ratios, ensuring consistent performance.
• Compact and Lightweight Design: Allows for easy installation and convenient working conditions, even in limited spaces.
• Bubble-Free Operation: Prevents air bubbles and contamination, maintaining material integrity.
• Ideal for High-Viscosity Applications: Suitable for adhesives, sealants, and other viscous materials in industries like automotive, electronics, and manufacturing.

Model	PCP-a135
Pump Sending Ratio	10:1, 20:1(For high pressure)
Applying Viscosity	10,000~400,000cps
Air Pressure	1~7bar
Air Consumption	80ml/min(max)
Applying Container	1kg, 3kg, 5kg
Power	AC220V 50/60Hz(110V:Option)
