The BP-2 Progressive Cavity Pump Controller is a high-performance BPP-Series controller designed to regulate the motor connected to the rotor, controlling motor speed up to 120 rpm. It supports both shot and suckback functions, ensuring accurate, repeatable, and precise fluid dispensing. With its real-time mode, the BP-2 offers ON/OFF control or time-setting control, providing versatile operation for a variety of precision fluid applications.

• Precise Motor Control for Fluid Dispensing: Regulates motor speed up to 120 rpm, ensuring consistent and accurate fluid flow for high-precision applications. Supports both shot and suckback functions for controlled fluid release and cut-off.
• Real-Time Mode for Fluid Accuracy: Offers ON/OFF control or time-setting control for enhanced flexibility and precision in dispensing small amounts of fluid.
• Smooth Fluid Dispensing: Minimizes tube wear and eliminates pulsation, delivering consistent and reliable fluid flow without disruptions, ensuring high dispensing accuracy in every cycle.
• Advanced Liquid Control for Precision Dispensing: Equipped with liquid suction, forward/reverse rotation, and automatic timer functions, the BP-2 provides comprehensive control over the fluid dispensing process, enhancing precision.
• Compatible with Low-Viscosity Fluids: Perfect for dispensing low-viscosity products such as instant adhesives, inks, and other materials that require high-precision fluid control.
• Direct Fluid Dispensing from Original Container: Fluids are directly sucked and dispensed from the original fluid container without the need for compressor air, simplifying the process and ensuring clean dispensing with minimal waste.
• Adjustable Discharge Amount for Accuracy: Fine-tune the dispensing volume using a manual or automatic timer function for precise fluid quantity control in various precision dispensing applications.

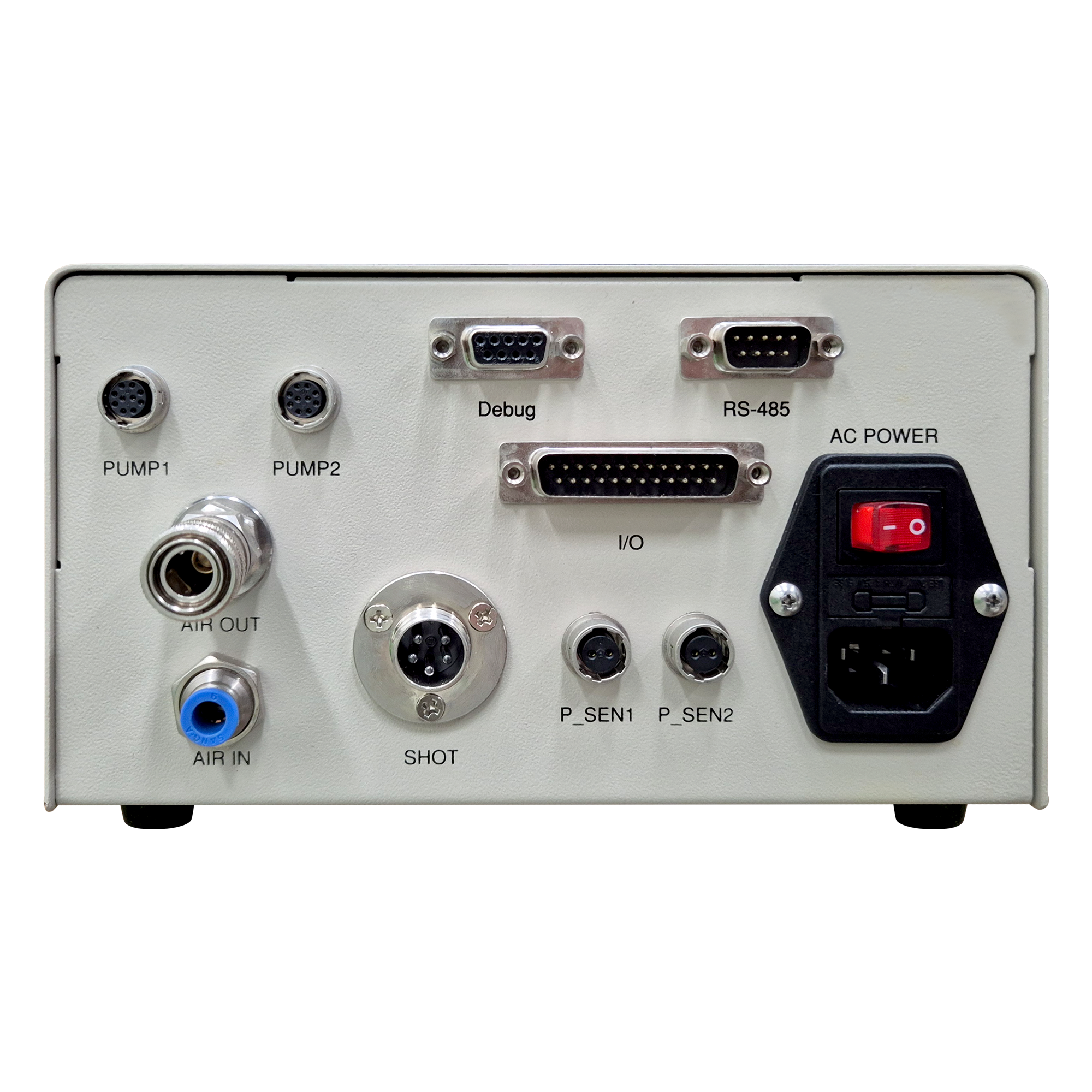

Model	RS485(Male), D-SUB 9 pin
Input/Output Signal	Shot, Channel No, User Optional / End Signal, Error Signal
Air IN-Port	6Ø Air Hose
Air OUT-Port	Auto Coupler
Pressure Regulator	0~7kgf/cm2
Operation Mode	Time / Real
Display	4.3" TFT LCD, Touch Panel
Motor	DC Servo Motor
External Control	Input 8 CH, Output 8 CH
Channel Memory	Internal: 200 CH, External: 16 CH
Consumption Rating	AC 80~220C(Pre Volt), 50/60Hz
Operating Temperature	10~40°C
Optional System	Dispensing Pressure Check (for 2 Parts only)
Dimension & Weight	220(W) x 224(D) x 120(H)mm / 1.8kg
