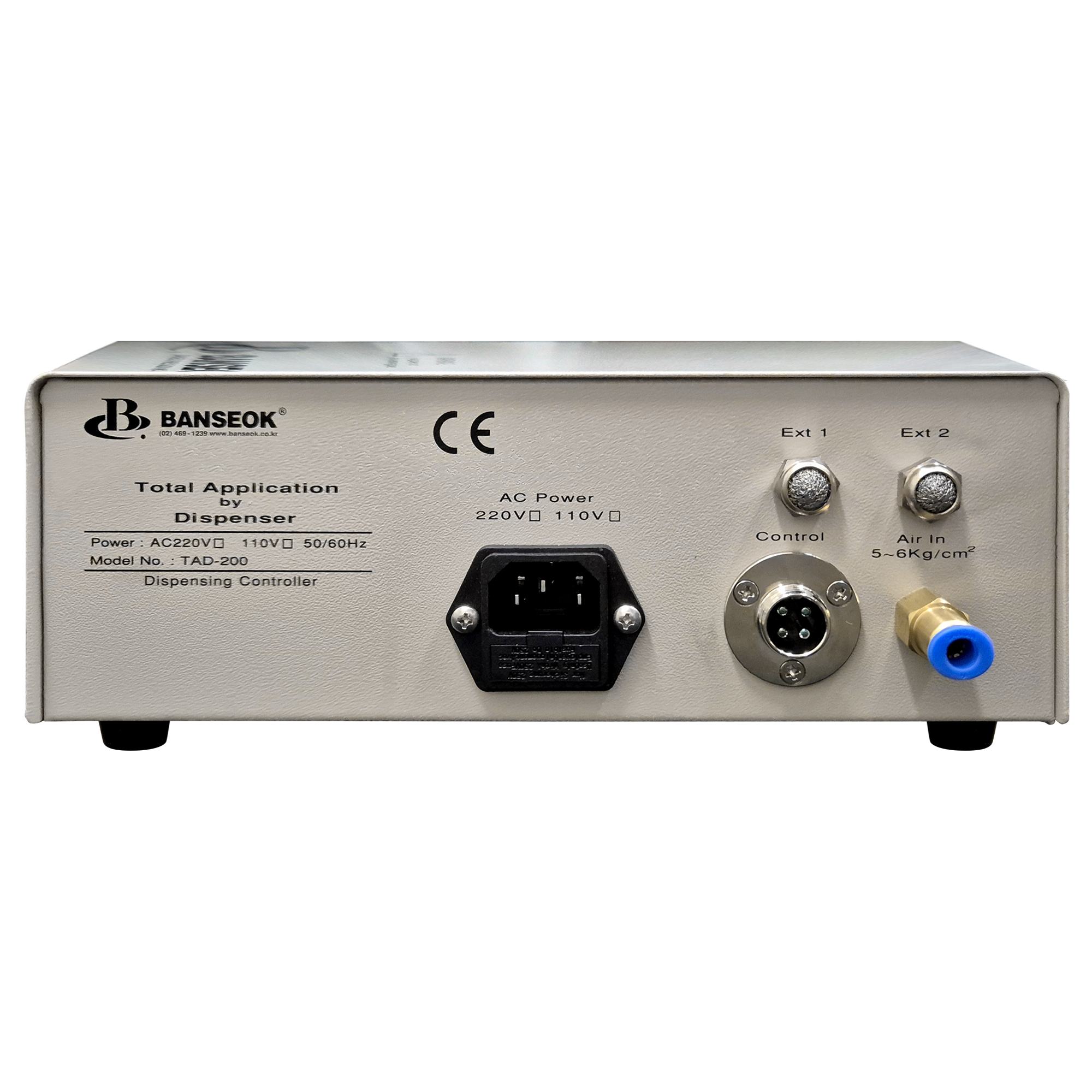

TAD-200V is a double action precision controller designed for use with double action valves in high-pressure fluid dispensing applications. TAD-200V adds enhanced control for double-acting applications, offering high-speed operation, ultra-precise dispense volume control, and automated dispensing with interval timer and automatic stop capabilities. Engineered for demanding fluid control needs, the TAD-200V is ideal for high-pressure dispensing in industries requiring exact, repeatable fluid control.

• Double Action Control: Optimized for high-pressure fluid control with double action valves, ensuring precision in demanding applications.
• Interval Timer: Provides automatic dispensing and stopping functions, enabling consistent and repeatable dispensing cycles.
• Vacuum Control: Prevents dripping of low-viscosity fluids by automatically applying vacuum after dispensing.
• Digital Timer with LED Display: Displays dispensing time in manual mode, simplifying real-time adjustments and monitoring.
• Memory Function: Retains previous settings after power cycles, enhancing convenience and reducing setup time.
• External Output Options: Supports automation and integrates easily with external interfaces, enhancing workflow efficiency.

Model	TAD-200V
Control Method	Electronic / Pneumatic System
Dispensing pressure	0~10kg/cm2 (S: Standard) 0~4kg/cm2 (L: Option) 0~2kg/cm2 (P: Option)
Time Range	0.01~99.99 sec
Interval Timer	0.01~99.99 sec
Out Signal	Open connector, DC 24V 20mmsec (Relay), 100mmsec (Relay)
Power Source	AC220C 50/60Hz (AC100V 50/60Hz: Option)
Power Consumption	32W
External Dimension & weight	232(W) x 186(D) x 81(H)mm, 2.7kg
